Pup (AC) Early

Pup ; Kolster Brandes Ltd. (ID = 1787516) Radio Pup ; Kolster Brandes Ltd. (ID = 1787518) Radio
Pup ; Kolster Brandes Ltd. (ID = 1787520) Radio Pup ; Kolster Brandes Ltd. (ID = 1787521) Radio
Pup ; Kolster Brandes Ltd. (ID = 1787522) Radio Pup ; Kolster Brandes Ltd. (ID = 1787523) Radio
Use red slider bar for more.
Pup ; Kolster Brandes Ltd. (ID = 1787516) Radio
Kolster Brandes Ltd.: Pup [Radio] ID = 1787516 1000x1114
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pup (AC) Early, Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3:
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-240 Volt
Loudspeaker Magnetic loudspeaker (reed) generic. / Ø 9 inch = 22.9 cm
Power out
from Radiomuseum.org Model: Pup [Early] - Kolster Brandes Ltd. KB, K.B.,
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 11.5 x 12 x 8.5 inch / 292 x 305 x 216 mm

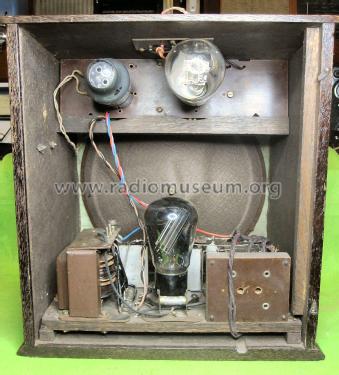

Notes Oak cabinet. Square sides & overlapping top unlike later models. 4 volt valves fitted such as AC/HL, AC/P & 506K.
Mentioned in Radio! Radio!

Model page created by Keith Staines. See "Data change" for further contributors.
