Rejectostat "Deluxe" KB 888

Rejectostat 'Deluxe' KB 888; Kolster Brandes Ltd. (ID = 1800602) Radio
Use red slider bar for more.
Rejectostat 'Deluxe' KB 888; Kolster Brandes Ltd. (ID = 1800602) Radio
Kolster Brandes Ltd.: Rejectostat "Deluxe" KB 888 [Radio] ID = 1800602 628x1183
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rejectostat "Deluxe" KB 888, Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB:

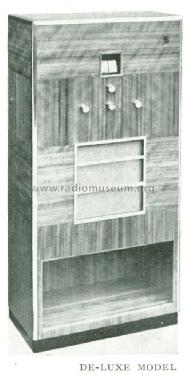

Image from service manual

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: VP4_5pin SP4 VP4_5pin SD4_Mullard TDD4 Pen4VA_5pin Pen4VA_5pin DW3_Mullard
Main principle Super-Heterodyne (Super in general); ZF/IF 130 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100 - 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Rejectostat "Deluxe" KB 888 - Kolster Brandes Ltd. KB, K.B.,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 22 x 43 x 12 inch / 559 x 1092 x 305 mm
Notes

There are 2 "Deluxe" models, both have natural walnut cabinets, chrome knobs and fittings, and there is a bookshelf at the bottom. They are available in 2 voltage versions, 888C suitable for 100V - 130V and 888B suitable for 200V - 250V.

See also KB 888 Standard.

Price in first year of sale 26.25 GBP
Mentioned in Radio! Radio!

Model page created by Mike Edwards. See "Data change" for further contributors.
