Rhapsody MP151/3

Rhapsody MP151/3; Kolster Brandes Ltd. (ID = 1496573) Radio

Rhapsody MP151/3; Kolster Brandes Ltd. (ID = 1496610) Radio
Rhapsody MP151/3; Kolster Brandes Ltd. (ID = 1496558) Radio Rhapsody MP151/3; Kolster Brandes Ltd. (ID = 1496560) Radio
Rhapsody MP151/3; Kolster Brandes Ltd. (ID = 1496563) Radio Rhapsody MP151/3; Kolster Brandes Ltd. (ID = 1496566) Radio
Rhapsody MP151/3; Kolster Brandes Ltd. (ID = 2293813) Radio Rhapsody MP151/3; Kolster Brandes Ltd. (ID = 2293814) Radio
Rhapsody MP151/3; Kolster Brandes Ltd. (ID = 2293815) Radio Rhapsody MP151/3; Kolster Brandes Ltd. (ID = 2309165) Radio
Rhapsody MP151/3; Kolster Brandes Ltd. (ID = 2309166) Radio
Use red slider bar for more.
Rhapsody MP151/3; Kolster Brandes Ltd. (ID = 1496558) Radio

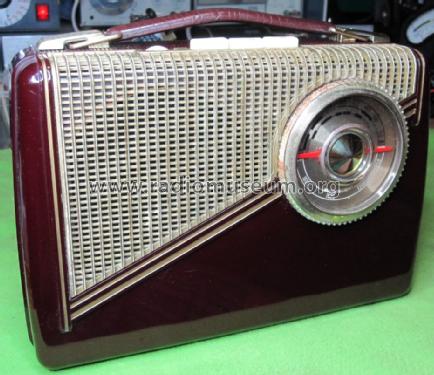

Kolster Brandes Ltd.: Rhapsody MP151/3 [Radio] ID = 1496558 933x805
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rhapsody MP151/3, Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL96
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Line / Batteries (any type) / 205; 225; 245 / 7,5 & 90 V Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Rhapsody MP151/3 - Kolster Brandes Ltd. KB, K.B.,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 242 x 173 x 83 mm / 9.5 x 6.8 x 3.3 inch
Notes

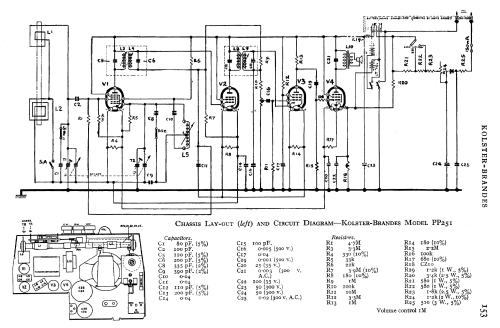

Chassis very similar or identical to Rhapsody Delux PP251, case similar to MP151/2 (possibly different colours).

One of the last KB battery valve (tube) portables. The last were probably the similar 1959 PP11 and Rhapsody de Luxe PP21 models. Various Transistor Rhapsody models in case style of Rhapsody Delux PP251 and MP151/2 from 1959 to 1963

KB service note
The MP151/3 can be identified as follows; Conventional mains dropper discarded and substituted by individual Welwyn type resistors.

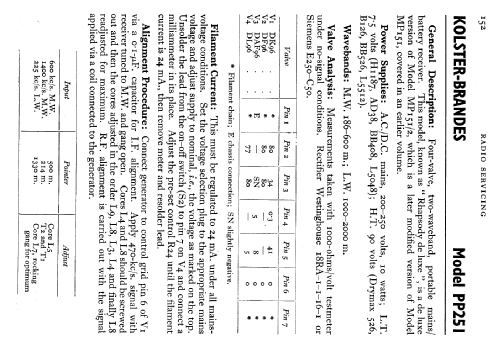

Mentioned in Radio And Television Servicing books (R&TVS) (1960-61 Edition. Refers to PP251 & MP151/2, no circuit.)

Model page created by Keith Staines. See "Data change" for further contributors.
