48752
Use red slider bar for more.

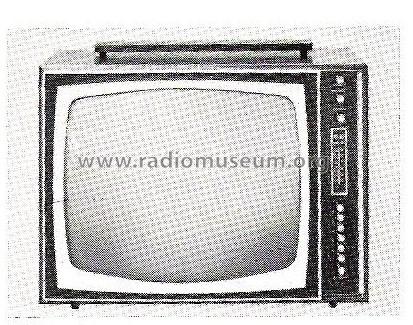

Körting Austria: 48752 [Television] ID = 565997 413x325
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1967 | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 10: | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | 7: |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Wave Bands given in the notes. |
| Details | |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: 48752 - Körting Austria |
| Material | Various materials |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 540 x 400 x 300 mm / 21.3 x 15.7 x 11.8 inch |
| Notes | VHF und UHF, 6 Drucktasten. 48 cm Tischgerät mit Tragegriff. |
Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
