ANW-2208/VIII (ANW-08/VIII) ANW-8-2208 RGN1503

ANW-2208/VIII ANW-8-2208; Körting-Radio; (ID = 813011) Power-S ANW-2208/VIII ANW-8-2208; Körting-Radio; (ID = 813012) Power-S
ANW-2208/VIII ANW-8-2208; Körting-Radio; (ID = 813013) Power-S ANW-2208/VIII ANW-8-2208; Körting-Radio; (ID = 1071664) Power-S
ANW-2208/VIII ANW-8-2208; Körting-Radio; (ID = 1071665) Power-S ANW-2208/VIII ANW-8-2208; Körting-Radio; (ID = 1071667) Power-S
ANW-2208/VIII ANW-8-2208; Körting-Radio; (ID = 1071668) Power-S ANW-2208/VIII ANW-8-2208; Körting-Radio; (ID = 2186554) Power-S
ANW-2208/VIII ANW-8-2208; Körting-Radio; (ID = 2186555) Power-S ANW-2208/VIII ANW-8-2208; Körting-Radio; (ID = 2186556) Power-S
Use red slider bar for more.

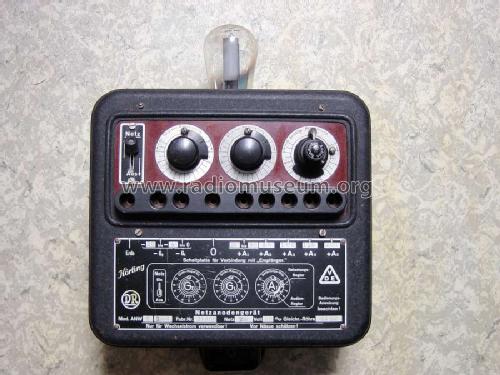

ANW-2208/VIII ANW-8-2208; Körting-Radio; (ID = 813011) Power-S
Körting-Radio;: ANW-2208/VIII ANW-8-2208 [Power-S] ID = 813011 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model ANW-2208/VIII (ANW-08/VIII) ANW-8-2208 RGN1503, Körting-Radio; Leipzig, später Grassau

Country:  Germany
Manufacturer / Brand:  Körting-Radio; Leipzig, später Grassau
alternative name

Dietz & Ritter GmbH, Dr.
Year: 1928/1929 Category: Power supply/conditioner or battery or charger
Valves / Tubes 1: RGN1503
schematic requested
Wave bands - without
Details Power: B-Battery Eliminator
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: ANW-2208/VIII ANW-8-2208 [RGN1503] - Körting-Radio; Leipzig, später
Material Metal case, TUBES VISIBLE
Shape Miscellaneous shapes - described under notes.
Notes Netzanode im Metallgehäuse zum Anhängen an die Wand mit 4 festen Anodenspannungen von 80, 100, 125, 200 V, einer regelbaren Audion-Anodenspannung ca. 25-50 V und 2 regulierbaren Gitterspannungen von 0-4 V und 4-20 V.
Price in first year of sale 150.00 RM +
Source of data Radio-Diehr, Berlin, 1928/1929

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
