HiFi-Stereo-Tuner T300 20539

HiFi-Stereo-Tuner T300 20539; Körting-Radio; (ID = 1204947) Radio

HiFi-Stereo-Tuner T300 20539; Körting-Radio; (ID = 1204948) Radio

HiFi-Stereo-Tuner T300 20539; Körting-Radio; (ID = 1204949) Radio

HiFi-Stereo-Tuner T300 20539; Körting-Radio; (ID = 1204950) Radio

HiFi-Stereo-Tuner T300 20539; Körting-Radio; (ID = 1204951) Radio

HiFi-Stereo-Tuner T300 20539; Körting-Radio; (ID = 1204952) Radio

HiFi-Stereo-Tuner T300 20539; Körting-Radio; (ID = 1204953) Radio

HiFi-Stereo-Tuner T300 20539; Körting-Radio; (ID = 1204954) Radio
HiFi-Stereo-Tuner T300 20539; Körting-Radio; (ID = 1637853) Radio HiFi-Stereo-Tuner T300 20539; Körting-Radio; (ID = 1204946) Radio
HiFi-Stereo-Tuner T300 20539; Körting-Radio; (ID = 1637990) Radio
Use red slider bar for more.
HiFi-Stereo-Tuner T300 20539; Körting-Radio; (ID = 1637853) Radio
Körting-Radio;: HiFi-Stereo-Tuner T300 20539 [Radio] ID = 1637853 933x400

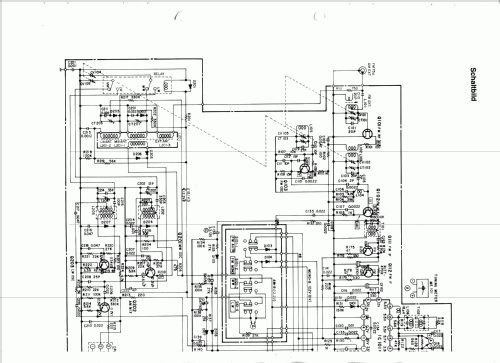

Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi-Stereo-Tuner T300 20539, Körting-Radio; Leipzig, später Grassau

Country:  Germany
Manufacturer / Brand:  Körting-Radio; Leipzig, später Grassau
alternative name

Dietz & Ritter GmbH, Dr.
Year: 1978 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: HiFi-Stereo-Tuner T300 20539 - Körting-Radio; Leipzig, später
Shape Book-shelf unit.
Dimensions (WHD) 430 x 100 x 230 mm / 16.9 x 3.9 x 9.1 inch
Notes HiFi Tuner mit UKW/MW/LW. Manuelle Drehkondensator-Abstimmung, analoge Anzeige für Feldstärke und Diskriminatormitte.
Source of data -- Original-techn. papers.

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Körting-Radio; Leipzig, später Grassau
Here you find 727 models, 575 with images and 422 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
