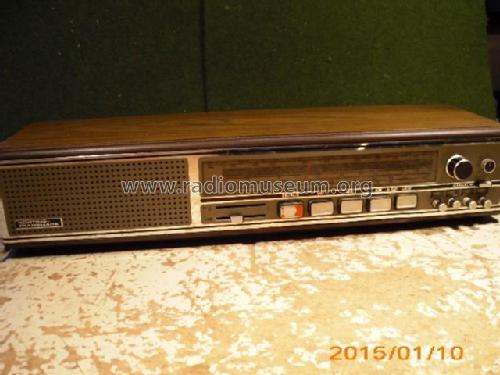

Mono-Noblesse 73 Ch= 33243

Körting-Radio; Leipzig, später Grassau

  • Year
  • 1973 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 263394
    • alternative name: Dietz & Ritter GmbH, Dr.

 Technical Specifications

  • Number of Transistors
  • -1
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 130 / 230 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Mono-Noblesse 73 Ch= 33243 - Körting-Radio; Leipzig, später
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 520 x 110 x 160 mm / 20.5 x 4.3 x 6.3 inch
  • Notes
  • für UKW 4 einstellbare Stationstasten, umschaltbar auf Handabstimmung über Hauptskala.

    Höhen-Bassregler,  Anschlüsse für Aussenlautsprecher und Tonbandgerät.

  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
  • Author
  • Model page created by Anton Sarne. See "Data change" for further contributors.
