Oslo 27155 Art.Nr 821/17

Oslo 27155 Art.Nr 821/17; Körting-Radio; (ID = 1166751) Radio

Oslo 27155 Art.Nr 821/17; Körting-Radio; (ID = 1166752) Radio

Oslo 27155 Art.Nr 821/17; Körting-Radio; (ID = 1166753) Radio

Oslo 27155 Art.Nr 821/17; Körting-Radio; (ID = 1166754) Radio
Oslo 27155 Art.Nr 821/17; Körting-Radio; (ID = 1577828) Radio Oslo 27155 Art.Nr 821/17; Körting-Radio; (ID = 1577829) Radio
Oslo 27155 Art.Nr 821/17; Körting-Radio; (ID = 1577830) Radio Oslo 27155 Art.Nr 821/17; Körting-Radio; (ID = 1577831) Radio
Oslo 27155 Art.Nr 821/17; Körting-Radio; (ID = 1992521) Radio Oslo 27155 Art.Nr 821/17; Körting-Radio; (ID = 1992522) Radio
Oslo 27155 Art.Nr 821/17; Körting-Radio; (ID = 1992523) Radio
Use red slider bar for more.
Oslo 27155 Art.Nr 821/17; Körting-Radio; (ID = 1577828) Radio
Körting-Radio;: Oslo 27155 Art.Nr 821/17 [Radio] ID = 1577828 792x594

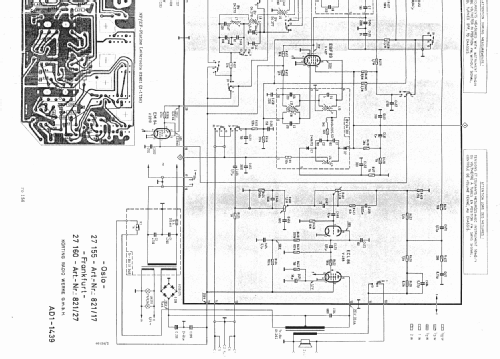

Select picture or schematic to display from thumbnails on the right and click for download.
For model Oslo 27155 Art.Nr 821/17, Körting-Radio; Leipzig, später Grassau

Country:  Germany
Manufacturer / Brand:  Körting-Radio; Leipzig, später Grassau
alternative name

Dietz & Ritter GmbH, Dr.
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 EM84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Oslo 27155 Art.Nr 821/17 - Körting-Radio; Leipzig, später
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes

Siehe auch Körting Oslo 27155 Art.Nr 821/179

Source of data -- Original-techn. papers.

Model page created by Hilmer Grunert. See "Data change" for further contributors.



All listed radios etc. from Körting-Radio; Leipzig, später Grassau
Here you find 728 models, 580 with images and 420 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
