• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1967 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 187719

• • alternative name: Dietz & Ritter GmbH, Dr.

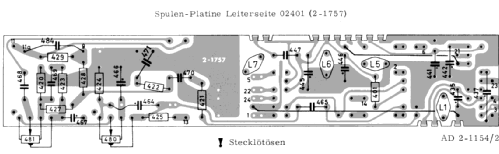

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EBF89 ECL86 EM84

• Number of Transistors

• Semiconductors
• B250C75 AA113 AA113

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

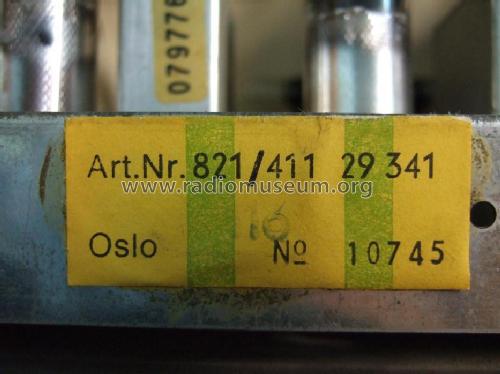

• Model: Oslo 29341 Art.Nr. 821/411 - Körting-Radio; Leipzig, später

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 575 x 190 x 170 mm / 22.6 x 7.5 x 6.7 inch

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Gerhard Waldherr. See "Data change" for further contributors.
