TR968

TR968; Körting-Radio; (ID = 1867708) Radio TR968; Körting-Radio; (ID = 1867718) Radio
TR968; Körting-Radio; (ID = 1867719) Radio TR968; Körting-Radio; (ID = 1867720) Radio
TR968; Körting-Radio; (ID = 2052333) Radio TR968; Körting-Radio; (ID = 2052334) Radio
Use red slider bar for more.

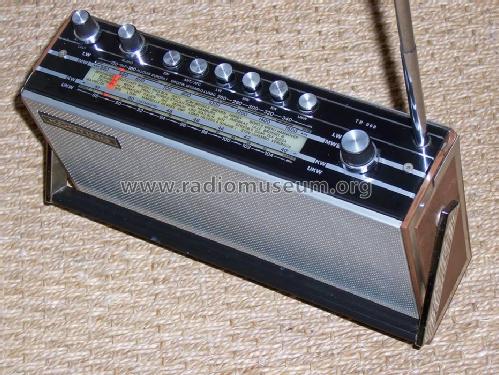

TR968; Körting-Radio; (ID = 1867708) Radio
Körting-Radio;: TR968 [Radio] ID = 1867708 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR968, Körting-Radio; Leipzig, später Grassau

Country:  Germany
Manufacturer / Brand:  Körting-Radio; Leipzig, später Grassau
alternative name

Dietz & Ritter GmbH, Dr.
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 5 x 1,5 / 7,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.3 W (unknown quality)
from Radiomuseum.org Model: TR968 - Körting-Radio; Leipzig, später
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 170 x 70 mm / 11 x 6.7 x 2.8 inch
Notes

Siehe auch Körting Transmare Transistorkoffer TR983.

6 Dioden, Ovallautsprecher 9x15 cm.

Source of data -- Original prospect or advert

Model page created by Daniel Jecker. See "Data change" for further contributors.
