Transmare Stereo-Tuner T500 30819 Art. Nr. 821/667

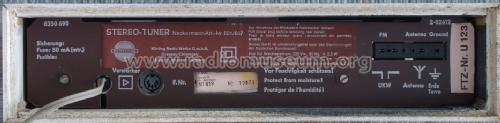

Transmare Stereo-Tuner T500 30819 Art. Nr. 821/667; Neckermann-Versand (ID = 1357974) Radio Transmare Stereo-Tuner T500 30819 Art. Nr. 821/667; Neckermann-Versand (ID = 1360039) Radio
Use red slider bar for more.
Transmare Stereo-Tuner T500 30819 Art. Nr. 821/667; Neckermann-Versand (ID = 1357974) Radio
Neckermann-Versand: Transmare Stereo-Tuner T500 30819 Art. Nr. 821/667 [Radio] ID = 1357974 933x389
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transmare Stereo-Tuner T500 30819 Art. Nr. 821/667, Neckermann-Versand KG; Frankfurt a.M.

Country:  Germany
Manufacturer / Brand:  Neckermann-Versand KG; Frankfurt a.M.
Brand

Twen Tone
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12: BF195 BF194 BC108 CD9000 AC132 BC148
Main principle Superhet with RF-stage; ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Transmare Stereo-Tuner T500 30819 Art. Nr. 821/667 - Neckermann-Versand KG;
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 380 x 90 x 195 mm / 15 x 3.5 x 7.7 inch
Notes

Hersteller Körting.

Skalenbeleuchtung, Stereo-Anzeige,
Abstimm-Anzeige mit beleuchtetem Instrument.
Jeder Halbleiter-Typ ist nur einmal gelistet.

Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Source of data - - Manufacturers Literature
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Norbert Huber. See "Data change" for further contributors.
