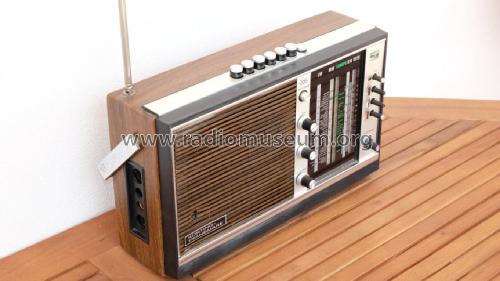

Transmare TR1075
Use red slider bar for more.
Körting-Radio;: Transmare TR1075 [Radio] ID = 2247926 1024x650
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Dietz & Ritter GmbH, Dr. | ||||
|---|---|---|---|---|---|
| Year: 1970 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 13: |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-220 / 6 × 1,5 & 1 × 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Transmare TR1075 - Körting-Radio; Leipzig, später |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 370 x 220 x 120 mm / 14.6 x 8.7 x 4.7 inch |
| Notes | Alimentazione a batterie 6 x 1,5Vcc tipo D + 1 da 9V per circuito FM,
Mobile in legno truciolato rivestito di pellicola plastica Ingresso TA |
Model page created by Dario Moretti. See "Data change" for further contributors.
