UKW-Automatic (Automatik) 28 334

UKW-Automatic 28 334; Körting Austria (ID = 2274126) Radio UKW-Automatic 28 334; Körting Austria (ID = 2274133) Radio
UKW-Automatic 28 334; Körting Austria (ID = 2273278) Radio
Use red slider bar for more.
UKW-Automatic 28 334; Körting Austria (ID = 2274126) Radio
Körting Austria: UKW-Automatic 28 334 [Radio] ID = 2274126 1400x875
Select picture or schematic to display from thumbnails on the right and click for download.
For model UKW-Automatic (Automatik) 28 334, Körting Austria:

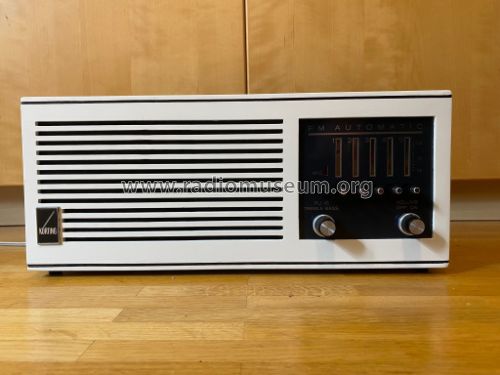

leicht optimierte Vorderansicht

Country:  Austria
Manufacturer / Brand:  Körting Austria
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF121 AF121 AF124 AF124 AF124 AC151 AC151 AC117 AC117 AC117 BA138 BA138 1N60 AA112 AA112 OA161 SZ12 ZF30 M2x15C350/250
Main principle Superhet with RF-stage; ZF/IF 10700 kHz
Tuned circuits 10 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: UKW-Automatic 28 334 - Körting Austria
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 350 x 150 x 135 mm / 13.8 x 5.9 x 5.3 inch
Notes
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Gregor Schwarz. See "Data change" for further contributors.
