K81A

K81A; Kosmos Radio SA; (ID = 1469289) Radio K81A; Kosmos Radio SA; (ID = 1469290) Radio
K81A; Kosmos Radio SA; (ID = 1469293) Radio K81A; Kosmos Radio SA; (ID = 1469295) Radio
Use red slider bar for more.

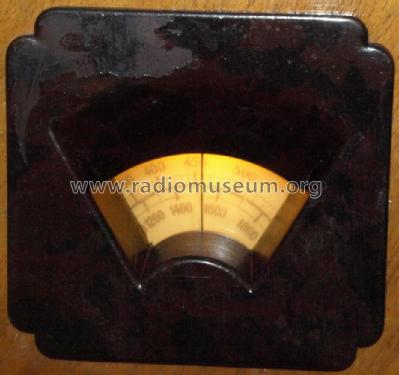

K81A; Kosmos Radio SA; (ID = 1469289) Radio
Kosmos Radio SA;: K81A [Radio] ID = 1469289 933x1022
Select picture or schematic to display from thumbnails on the right and click for download.
For model K81A, Kosmos Radio SA; Warszawa

Country:  Poland
Manufacturer / Brand:  Kosmos Radio SA; Warszawa
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: E499 E438 C443 1802
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110,120, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: K81A - Kosmos Radio SA; Warszawa
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes See also Philips Junior 946A
Source of data -- Collector info (Sammler)

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Kosmos Radio SA; Warszawa
Here you find 23 models, 17 with images and 7 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
