K83A

K83A; Kosmos Radio SA; (ID = 335895) Radio
K83A; Kosmos Radio SA; (ID = 1470049) Radio K83A; Kosmos Radio SA; (ID = 1470050) Radio
K83A; Kosmos Radio SA; (ID = 250089) Radio K83A; Kosmos Radio SA; (ID = 250092) Radio
K83A; Kosmos Radio SA; (ID = 250091) Radio K83A; Kosmos Radio SA; (ID = 1469300) Radio
K83A; Kosmos Radio SA; (ID = 250093) Radio
Use red slider bar for more.
K83A; Kosmos Radio SA; (ID = 1470049) Radio
Kosmos Radio SA;: K83A [Radio] ID = 1470049 933x1045

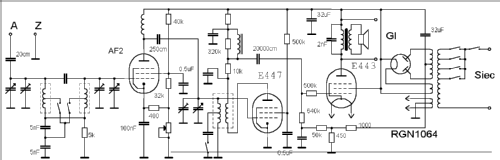

Select picture or schematic to display from thumbnails on the right and click for download.
For model K83A, Kosmos Radio SA; Warszawa

Country:  Poland
Manufacturer / Brand:  Kosmos Radio SA; Warszawa
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AF2 E446 C443 506
Main principle TRF with regeneration
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: K83A - Kosmos Radio SA; Warszawa
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 335 x 36021 x 0 mm / 13.2 x 1418.1 x 0 inch
Notes Doppelsperrkreis, Dezimalskala. See alsoPhilips 33A
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 350.00 zl
Source of data - - Data from my own collection
Mentioned in Zlote Lata Radia, Polen

Model page created by Andrzej Cieslak. See "Data change" for further contributors.



All listed radios etc. from Kosmos Radio SA; Warszawa
Here you find 23 models, 17 with images and 7 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
