• Year
  • 1952/1953
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 93934

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 472/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110/220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

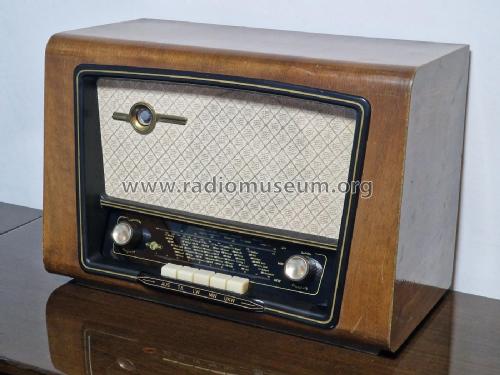

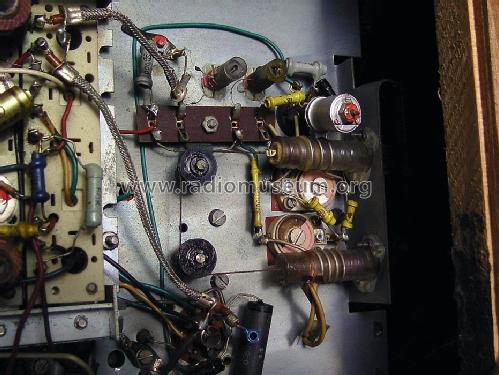

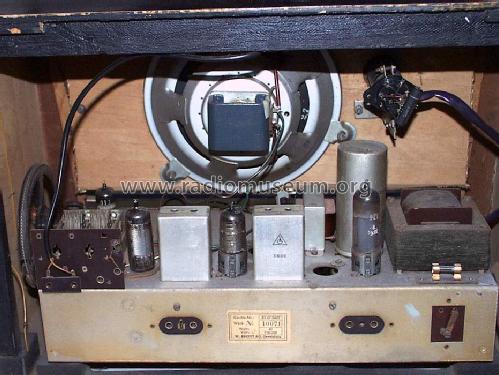

  • Model: Tenor W53 83-67-5602 - Krefft AG, W.; Gevelsberg
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 460 x 315 x 240 mm / 18.1 x 12.4 x 9.4 inch
  • Notes
  • Magisches Auge wird als NF-Verstärkerstufe verwendet. Ratiodetektor mit Diodenpaar RL231. Induktive Abstimmung bei UKW.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Literature/Schematics (2)
  • Funkschau (Schaltungssammlung Nr.33 und Funktionsbeschreibung)
  • Author
  • Model page created by Harald Pohlmann. See "Data change" for further contributors.
