Super-Power Long Range Panoramic 11-71

Super-Power Long Range Panoramic 11-71; Kriesler Radio (ID = 1733504) Radio

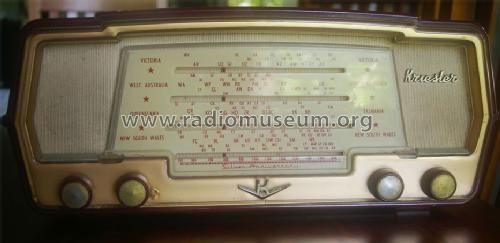

Super-Power Long Range Panoramic 11-71; Kriesler Radio (ID = 1525076) Radio Super-Power Long Range Panoramic 11-71; Kriesler Radio (ID = 734976) Radio
Super-Power Long Range Panoramic 11-71; Kriesler Radio (ID = 734978) Radio Super-Power Long Range Panoramic 11-71; Kriesler Radio (ID = 1525064) Radio
Super-Power Long Range Panoramic 11-71; Kriesler Radio (ID = 734977) Radio Super-Power Long Range Panoramic 11-71; Kriesler Radio (ID = 646661) Radio
Super-Power Long Range Panoramic 11-71; Kriesler Radio (ID = 1525067) Radio Super-Power Long Range Panoramic 11-71; Kriesler Radio (ID = 1525070) Radio
Super-Power Long Range Panoramic 11-71; Kriesler Radio (ID = 1525072) Radio Super-Power Long Range Panoramic 11-71; Kriesler Radio (ID = 1525073) Radio
Use red slider bar for more.
Super-Power Long Range Panoramic 11-71; Kriesler Radio (ID = 1525076) Radio
Kriesler Radio: Super-Power Long Range Panoramic 11-71 [Radio] ID = 1525076 933x598
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Power Long Range Panoramic 11-71, Kriesler Radio Company; Newtown (Sydney)

Country:  Australia
Manufacturer / Brand:  Kriesler Radio Company; Newtown (Sydney)
Year: 1957–1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6AN7 6N8 6BD7 6AQ5 6V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 220-240; 240-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: Super-Power Long Range Panoramic 11-71 - Kriesler Radio Company;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 385 x 155 x 175 mm / 15.2 x 6.1 x 6.9 inch
Notes

Colours available in Burgundy, Ivory & Charcoal/Pink.

Net weight (2.2 lb = 1 kg) 4.4 kg / 9 lb 11.1 oz (9.692 lb)
Price in first year of sale 26.76 AUS £
Mentioned in Manufacturers Data
Literature/Schematics (1) - - Manufacturers Literature (Kriesler Technical Service Instructions.)
Literature/Schematics (2) - - Manufacturers Literature

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Kriesler Radio Company; Newtown (Sydney)
Here you find 801 models, 268 with images and 327 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Kriesler Radio: Super-Power Long Range Panoramic 11-71
Threads: 1 | Posts: 2
Hits: 1476     Replies: 1
kriesler: 11-71 circuit diagram
Stuart Irwin
03.Nov.14
  1

Hello.  Just a note that two of the schematics for this model pertain to the model 11-71A, not the 11-71.  These should be transferred to the correct model page.

Regards,

Stuart

Hans-Joachim Korn † 16.11.15
03.Nov.14
  2

Hello Stuart,

thank you for the information. The Schematics have been transferred to model 11-71A.

Best regards,

Achim






Kriesler Radio: Super-Power Long Range Panoramic 11-71
End of forum contributions about this model
