3 in 1 Stereophonic Radiogram 11-85

Kriesler Radio Company; Newtown (Sydney)

Data
Forum
Pictures
Collections

  • Year
  • 1960–1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 262448

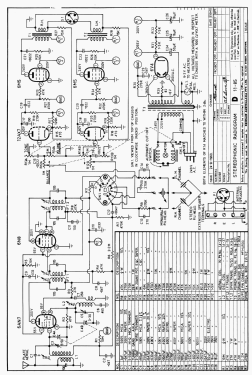

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220; 240 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 3 in 1 Stereophonic Radiogram 11-85 - Kriesler Radio Company;
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

  • Kriesler 11-85 "3-in-one" Stereophonic Radiogram

    With two separate amplifiers and 4-cone stereo speaker system, 4-speed automatic record changer, two separate plug-in type pick-up heads - one for all monaural recordings, 78, 45, 33 ⅓ and 16⅔ r.p.m., with "turnover" needles for "microgroove" or "standard" - one for stereophonic recordings, proximity record file, all controls grouped on Master Control Panel. Choice of walnut, maple or rose-mahogany timber tonings.

    Specially designed for stereophonic sound in rooms of normal size, without the need for separate cabinets. Radio broadcasts and monaural records play through the two separate amplifiers a 4-cone speaker system for greater depth and spread. (MINGAY'S PRICE SERVICE)

    See also earlier version Model 11-77.

  • Price in first year of sale
  • 117.65 AUS £
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Kriesler Series "A" Radio Handbook.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
