For model 121-1, Kriesler Radio Company; Newtown (Sydney):

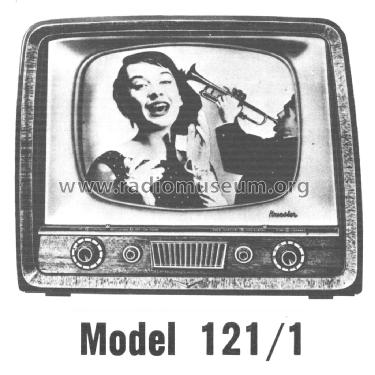

Kriesler model 121-1. Photo taken with permission from owner.

Country:  Australia
Manufacturer / Brand:  Kriesler Radio Company; Newtown (Sydney)
Year: 1956/1957 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: 6CW7 6BL8 6BX6 6BX6 6BX6 6CK6 6BL8 6BX6 6BM8 6BL8 6BM8 6BL8 6BL8 6CM5 6R3 1S2 6N3 6N3 MW43-64 or MW43-69
Semiconductors (the count is only for transistors) OA70 OA79 OA79
Main principle Superhet with RF-stage; ZF/IF 36000/30500 kHz; 2 AF stage(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 200; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 121-1 - Kriesler Radio Company;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 21.5 x 19.5 x 18 inch / 546 x 495 x 457 mm
Notes

This 43 cm B&W television set tuned the 10 then standard Australian VHF channels.  This was Kriesler's first television model.  Some cabinet variants may have had only one speaker.

Cabinet finishes available in walnut, mahogany, maple, rosewood & cedar.

Net weight (2.2 lb = 1 kg) 85 lb 0 oz (85 lb) / 38.590 kg
Price in first year of sale 225.75 AUS £
Mentioned in Mingay's Price Service (May 1957.)

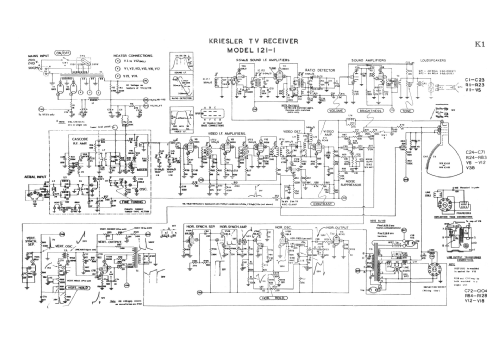

Literature/Schematics (1) - - Manufacturers Literature (Kriesler Service Handbook.)
Literature/Schematics (2) J.R. Publications Television Service Handbook (Television Service Manual 2nd edition 1961, L.J. Series 1962 & 1967, Page K1.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
