Manual Wide-Line Console 121-60 Ch= 79-4C
Kriesler Radio Company; Newtown (Sydney)
- Country
- Australia
- Manufacturer / Brand
- Kriesler Radio Company; Newtown (Sydney)
- Year
- 1962/1963
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 217064
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 36750/31250 kHz; 1 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 50 Hz, 225-245; 245-265 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Manual Wide-Line Console 121-60 Ch= 79-4C - Kriesler Radio Company;
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 37.5 x 32 x 17.5 inch / 953 x 813 x 445 mm
- Notes
-

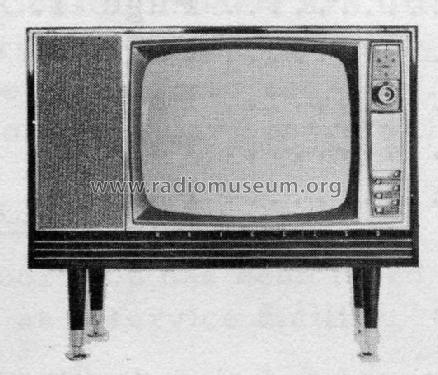

Kriesler Model 121-60 Wide-Line Console (13 standard Australian VHF channels)
A 23' console TV receiver on medium legs. Kriesler "Super Efficiency" Type 79-4C chassis. Cabinet finished in maple, walnut or rose mahogany; gold trim.
Features: continuously variable tone control, automatic noise suppression, automatic range finder and automatic geograhical aerial selector. "Computer-matic" guardian circuit automatically maintains picture quality and stability, minimises distortion. "Projectographic" channel indicator.
(FROM MINGAY'S PRICE SERVICE)
The height includes 9" legs.
See also "Super Fringe" version Model 121-66
- Net weight (2.2 lb = 1 kg)
- 146 lb (146 lb 0 oz) / 66.284 kg
- Price in first year of sale
- 198.45 AUS £
- Mentioned in
- Mingay's Price Service (Feb 1963 & Aug 1963.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Model Handbook - Series A, October 1962.)
- Literature/Schematics (2)
- -- Original-techn. papers. (Addendum to Service Handbook 79-4A TV Chassis Series B, September 1962.)
- Literature/Schematics (3)
- J.R. Publications Television Service Handbook (L.J. Series Vol. 2, 1967, Page K14.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
