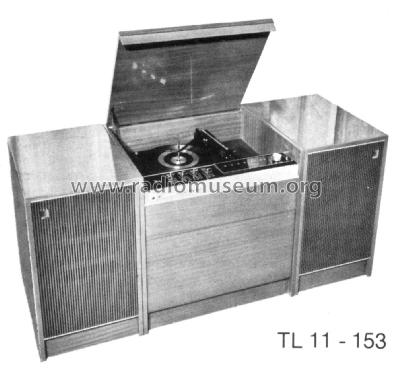

Baby Grand 11-153 (TL) With timber lid
Kriesler Radio Company; Newtown (Sydney)
- Country
- Australia
- Manufacturer / Brand
- Kriesler Radio Company; Newtown (Sydney)
- Year
- 1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 332597
- Number of Transistors
- 16
- Semiconductors
- BF194 BF195 BF195 BF194 BC149 BC148 BC147 OC9524 AD161 AD162 BC149 BC148 BC147 OC9524 AD161 AD162 BY126 BY126 BZY88 OA90
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 225-245; 245-265 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Baby Grand 11-153 [With timber lid] - Kriesler Radio Company;
- Shape
- Console with any shape - in general
- Notes
-
Baby Grand" all transistor, AC broadcast, four-speed automatic record changer (BSR MA-55 with SC-5M cartridge), 10 watts RMS per channel, 4-cone speaker system, DIN socket, headphone socket, microphone sockets, oiled teak, gloss maple, walnut, rose mahogany.
Dimensions are for the Command Module only. Satellite Modules (speakers) W 12"/H 17"/ D 21".
Earlier version Model 11-153 has a tinted acrylic lid.
- Price in first year of sale
- 279.00 AUS $
- Mentioned in
- Mingay's Price Service (Aug 1972.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Kriesler Technical Advisory Service Sheet No. 141.)
- Literature/Schematics (2)
- J.R. Publications Transistor Radio Service Handbook (Group 8, 1971/1972 Australian Section, Page K37.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
