HiFi Clock-Matic 121-73A Ch= 79-15
Kriesler Radio Company; Newtown (Sydney)
- Country
- Australia
- Manufacturer / Brand
- Kriesler Radio Company; Newtown (Sydney)
- Year
- 1964
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 216458

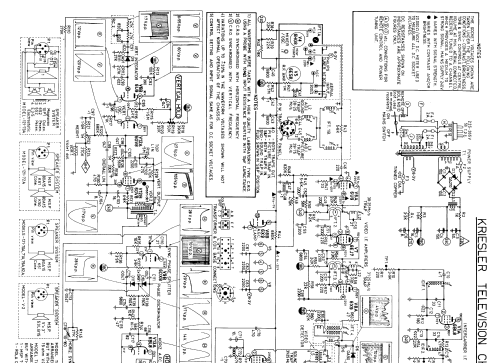

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6ES8 6HG8 6U9 6EJ7 6X9 6DX8 6BL8 6BX6 6GW8 6HS8 6BL8 6GV8 6BL8 6CM5 6AL3 1S2 AW59-91 or A59-11W
- Main principle
- Superhet with RF-stage; ZF/IF 36750/31250 kHz; 2 AF stage(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 225-245; 245-265 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: HiFi Clock-Matic 121-73A Ch= 79-15 - Kriesler Radio Company;
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 40.5 x 33 x 16.75 inch / 1029 x 838 x 425 mm
- Notes
- 59 cm B&W television set tunes the 13 standard Australian VHF channels. This model incorporates a time switch and a wired remote control with a motorized tuner. The speakers consist of a 10" woofer, two 6" mid-range and an electrostatic tweeter.
- Net weight (2.2 lb = 1 kg)
- 189 lb (189 lb 0 oz) / 85.806 kg
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
