High-Fidelity Royal Console 121-49 Ch= 79-5A
Kriesler Radio Company; Newtown (Sydney)
- Country
- Australia
- Manufacturer / Brand
- Kriesler Radio Company; Newtown (Sydney)
- Year
- 1961
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 278143
Image provided by Andrew McCallum

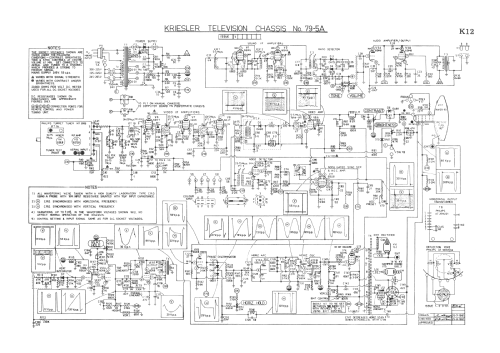

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BL8 6ES8 6BY7 6BX6 6EJ7 6DX8 6BX6 6BX6 6BM8 6BL8 6BU8 6GV8 6BL8 6CM5 6AL3 1S2 AW59-90
- Number of Transistors
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 200-265 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: High-Fidelity Royal Console 121-49 Ch= 79-5A - Kriesler Radio Company;
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 40.5 x 30.5 x 18 inch / 1029 x 775 x 457 mm
- Notes
-
This 23 inch television receiver tuned the 13 standard Australian VHF TV channels. It had a wired remote control and a motorised tuner.
- Mentioned in
- - - Manufacturers Literature
- Literature/Schematics (1)
- - - Manufacturers Literature
- Literature/Schematics (2)
- JR Television Service Handbook Page K12
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
