Q4 Disc-O-Tape Wideline 11-217

Q4 Disc-O-Tape Wideline 11-217; Kriesler Radio (ID = 2619938) Radio
Use red slider bar for more.
Q4 Disc-O-Tape Wideline 11-217; Kriesler Radio (ID = 2619938) Radio

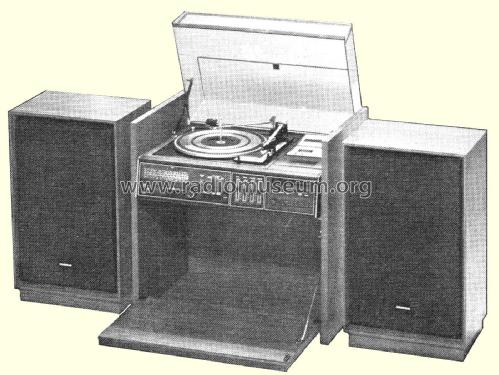

Kriesler Radio: Q4 Disc-O-Tape Wideline 11-217 [Radio] ID = 2619938 1400x1051
Select picture or schematic to display from thumbnails on the right and click for download.
For model Q4 Disc-O-Tape Wideline 11-217, Kriesler Radio Company; Newtown (Sydney):
From service manual.

Country:  Australia
Manufacturer / Brand:  Kriesler Radio Company; Newtown (Sydney)
Year: 1975/1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details Changer + Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 240; 265 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Q4 Disc-O-Tape Wideline 11-217 - Kriesler Radio Company;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 585 x 565 x 370 mm / 23 x 22.2 x 14.6 inch
Notes

A three piece modular floor standing sound system with acrylic lid. Features electronic auto stop on cassette, 8" twin cone driver plus 3" tweeters, dual channel power indicating meters and Garrard 6-300 record changer/player with 4 pole motor and diamond stylus.

Price in first year of sale 495.00 AUS $
Mentioned in Mingay's Price Service (Feb 1976.)
Literature/Schematics (1) -- Original-techn. papers. (Service Sheet No. 162, July 1976.)

Model page created by Martin Kent. See "Data change" for further contributors.
