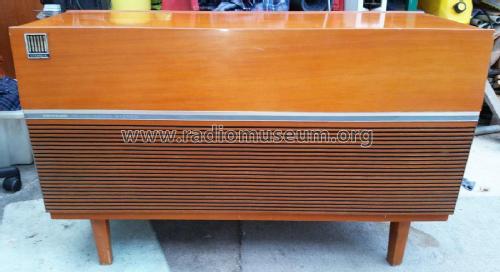

Series 6 Multisonic Stereo 11-133B

Kriesler Radio Company; Newtown (Sydney)

Data
Forum
Pictures
Collections

  • Year
  • 1969–1975
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 265609

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 230-250 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Series 6 Multisonic Stereo 11-133B - Kriesler Radio Company;
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 1070 x 700 x 410 mm / 42.1 x 27.6 x 16.1 inch
  • Notes

  • Four speed automatic BSR type MA65 record changer

    This model is electrically identical to models 11-98 & 11-98A with the exeption of a solid state rectifier. It has the same shape & style as models 11-98 & 11-98A with the exception of the lid. The lid covers the entire top instead half like the 11-98. This was the last valve radiogram produced by Kriesler.

    Cabinet finishes available in Maple, Walnut, Rose Mahogany & Teak.

  • Price in first year of sale
  • 232.00 AUS $
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Schematic)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
