Boss 3RW

Boss 3RW ; Krischker & Nehoda; (ID = 955649) Radio Boss 3RW ; Krischker & Nehoda; (ID = 955653) Radio
Boss 3RW ; Krischker & Nehoda; (ID = 955729) Radio Boss 3RW ; Krischker & Nehoda; (ID = 955654) Radio
Boss 3RW ; Krischker & Nehoda; (ID = 955655) Radio Boss 3RW ; Krischker & Nehoda; (ID = 955657) Radio
Boss 3RW ; Krischker & Nehoda; (ID = 955658) Radio Boss 3RW ; Krischker & Nehoda; (ID = 955659) Radio
Use red slider bar for more.

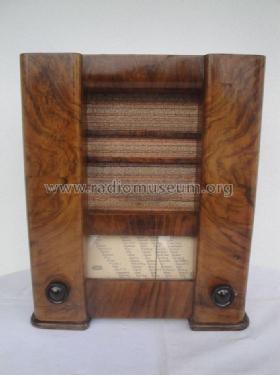

Boss 3RW ; Krischker & Nehoda; (ID = 955649) Radio
Krischker & Nehoda;: Boss 3RW [Radio] ID = 955649 699x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Boss 3RW, Krischker & Nehoda; Wien

Country:  Austria
Manufacturer / Brand:  Krischker & Nehoda; Wien
alternative name

Boss
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AK1 E444 E443H 506
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Boss 3RW - Krischker & Nehoda; Wien
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 330 x 390 x 265 mm / 13 x 15.4 x 10.4 inch
Net weight (2.2 lb = 1 kg) 11.3 kg / 24 lb 14.2 oz (24.89 lb)

Model page created by Josef Pils. See "Data change" for further contributors.
