Champion 3WA

Champion 3WA; Krischker & Nehoda; (ID = 276609) Radio Champion 3WA; Krischker & Nehoda; (ID = 276613) Radio
Champion 3WA; Krischker & Nehoda; (ID = 276612) Radio Champion 3WA; Krischker & Nehoda; (ID = 166891) Radio
Champion 3WA; Krischker & Nehoda; (ID = 166892) Radio Champion 3WA; Krischker & Nehoda; (ID = 276610) Radio
Champion 3WA; Krischker & Nehoda; (ID = 276611) Radio Champion 3WA; Krischker & Nehoda; (ID = 276614) Radio
Champion 3WA; Krischker & Nehoda; (ID = 276615) Radio
Use red slider bar for more.
Champion 3WA; Krischker & Nehoda; (ID = 276609) Radio

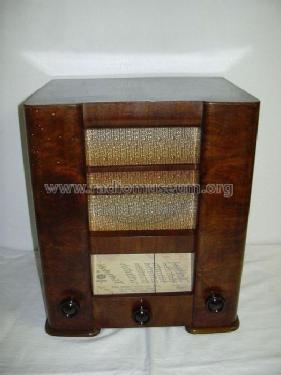

Krischker & Nehoda;: Champion 3WA [Radio] ID = 276609 526x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Champion 3WA, Krischker & Nehoda; Wien

Country:  Austria
Manufacturer / Brand:  Krischker & Nehoda; Wien
alternative name

Boss
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AK1 E444 E443H 506
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Champion 3WA - Krischker & Nehoda; Wien
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 330 x 395 x 260 mm / 13 x 15.6 x 10.2 inch
Net weight (2.2 lb = 1 kg) 11.6 kg / 25 lb 8.8 oz (25.551 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
