Stell-Trenntransformator RG7

Stell-Trenntransformator RG7; KSL Transformatoren (ID = 2537707) Equipment Stell-Trenntransformator RG7; KSL Transformatoren (ID = 2537708) Equipment
Use red slider bar for more.

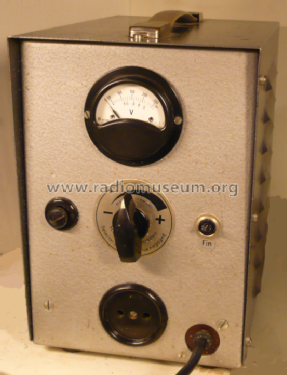

Stell-Trenntransformator RG7; KSL Transformatoren (ID = 2537707) Equipment
KSL Transformatoren: Stell-Trenntransformator RG7 [Equipment] ID = 2537707 554x722
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stell-Trenntransformator RG7, KSL Transformatoren K.F. Schwarz GmbH; Ludwigshafen

Country:  Germany
Manufacturer / Brand:  KSL Transformatoren K.F. Schwarz GmbH; Ludwigshafen
Year: 1960 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Stell-Trenntransformator RG7 - KSL Transformatoren K.F.
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 160 x 235 x 250 mm / 6.3 x 9.3 x 9.8 inch
Notes

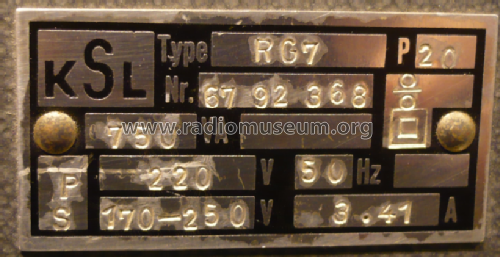

Stell-Trenntransformator RG7, Ausgangsspannung 170 ... 250 V / 3,14A. Die Ausgangsspannung läst sich in 15 Stufen zwischen 170 und 250 Volt einstellen.

Model page created by Oswald Bettendorf. See "Data change" for further contributors.



All listed radios etc. from KSL Transformatoren K.F. Schwarz GmbH; Ludwigshafen
Here you find 7 models, 7 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
