Nagra 10½" Large Reel Adapter QGB

Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682775) Misc

Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682776) Misc

Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682777) Misc

Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682778) Misc

Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682784) Misc

Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682785) Misc

Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682787) Misc

Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682788) Misc

Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682789) Misc

Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682792) Misc
Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1681609) Misc Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1681621) Misc

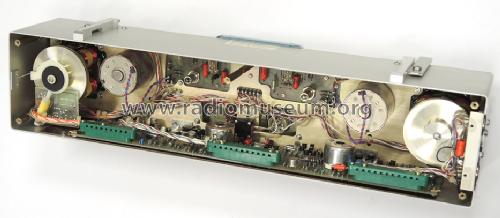

Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1681622) Misc Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1681627) Misc
Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682801) Misc Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682802) Misc
Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682803) Misc Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682804) Misc
Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682806) Misc Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1682808) Misc
Use red slider bar for more.
Nagra 10½' Large Reel Adapter QGB; Kudelski SA; (ID = 1681609) Misc
Kudelski SA;: Nagra 10½" Large Reel Adapter QGB [Misc] ID = 1681609 933x496
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nagra 10½' Large Reel Adapter QGB, Kudelski SA; Cheseaux-sur-Lausanne:
Mit aufgesetzten Adaptern (hubs) für 3-Zack Aufnahme. Die beiden roten Schraubhülsen kommen zum Schutz des Tonbandes auf die Spulenachsen der Nagra Bandmaschine.

Country:  Switzerland
Manufacturer / Brand:  Kudelski SA; Cheseaux-sur-Lausanne
Brand

Nagra
Year: 1974 ? Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) 51: BC184 BC214 2N3107 MJE181 or. BD789 MJE171 or. BD790 TIP47 MRD14B MLED92 1N4148 1N4003 MR812
Wave bands - without
Details Tape Recorder
Power type and voltage Powered by external power supply or a main unit. / DC 11-30 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Nagra 10½" Large Reel Adapter QGB - Kudelski SA; Cheseaux-sur-
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 440 x 125 x 105 mm / 17.3 x 4.9 x 4.1 inch
Notes

The Large Reel Adapter QGB is an accessory developed for Nagra self-contained monophonic, stereophonic and instrumentation recorders model E, 4.2, IV-S and IV-SJ. It permits the use of 10½" (267 mm) reels with cine-type reel holder and flanges with NAB or AEG-type hubs, which can hold 2400 ft (730 m) of 2 mil (50 µ) tape giving 1 hour of recording.

This very sophisticated unit is fully automatic. The QGB ensures a stable tape speed and very fast forward and rewind functions, smaller reels can also be used with advantage. The reel supports accept interchangeable adapters fitting all existing types of hubs. These are coupled to the servo motors controlled by the tensiometers, maintaining the tape tension within very narrow limits.

The QGB can be supplied from the internal batteries of the Nagra. The Nagra-QGB system can also be powered by an ATN-3 mains power supply (or equivalent) which connects to the "power" socket of the QGB.

Each transistor/diode listed once per type.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Mentioned in - - Manufacturers Literature
Literature/Schematics (1) -- Schematic

Model page created by a member from A. See "Data change" for further contributors.
