Nagra-SN Power-Supply ASN

Nagra-SN Power-Supply ASN; Kudelski SA; (ID = 2122085) Power-S

Nagra-SN Power-Supply ASN; Kudelski SA; (ID = 2122086) Power-S
Nagra-SN Power-Supply ASN; Kudelski SA; (ID = 2122083) Power-S Nagra-SN Power-Supply ASN; Kudelski SA; (ID = 2122082) Power-S
Nagra-SN Power-Supply ASN; Kudelski SA; (ID = 2122084) Power-S
Use red slider bar for more.
Nagra-SN Power-Supply ASN; Kudelski SA; (ID = 2122083) Power-S
Kudelski SA;: Nagra-SN Power-Supply ASN [Power-S] ID = 2122083 1400x1059
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nagra-SN Power-Supply ASN, Kudelski SA; Cheseaux-sur-Lausanne

Country:  Switzerland
Manufacturer / Brand:  Kudelski SA; Cheseaux-sur-Lausanne
Brand

Nagra
Year: 1976 ?? Category: Power supply/conditioner or battery or charger
Semiconductors (the count is only for transistors) 6: BC214 BC184 MJE171 or. 2N6181 BC214 MJE171 or. 2N6181 BC214 1N4003 1N4003 1N4003 1N4003 1N4003 Diode_LED
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-127; 220-240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Nagra-SN Power-Supply ASN - Kudelski SA; Cheseaux-sur-
Material Metal case
Notes

Netzteil für die Miniaturtonbandgeräte der Reihe NAGRA SN. Kann auch zum Laden der im Gerät eingesetzten Akkus verwendet werden.

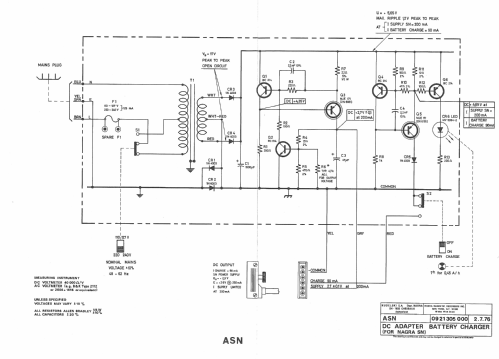

Mentioned in -- Schematic

Model page created by Jörg Geidies. See "Data change" for further contributors.
