- Country
- Sweden
- Manufacturer / Brand
- Kungs (Brand); Göteborg
- Year
- 1943
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 123942
-
- alternative name: Kungsradio
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 135; 150; 220; 235; 245; 260 Volt
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org

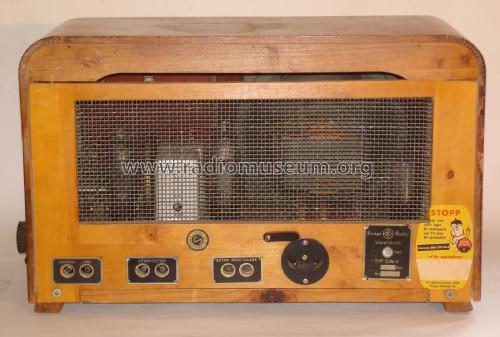

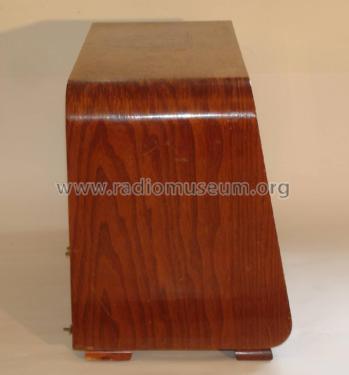

- Model: 224V - Kungs Brand; Göteborg
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 470 x 297 x 229 mm / 18.5 x 11.7 x 9 inch
- Net weight (2.2 lb = 1 kg)
- 10.4 kg / 22 lb 14.5 oz (22.907 lb)
- Price in first year of sale
- 325.00 SEK
- Source of data
- - - Manufacturers Literature
