225V

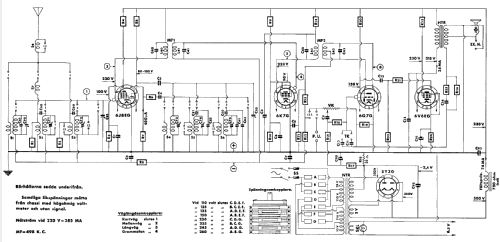

225V; Kungs Brand; (ID = 659688) Radio

225V; Kungs Brand; (ID = 659689) Radio
225V; Kungs Brand; (ID = 405267) Radio 225V; Kungs Brand; (ID = 405269) Radio
225V; Kungs Brand; (ID = 405268) Radio
Use red slider bar for more.
225V; Kungs Brand; (ID = 405267) Radio
Kungs Brand;: 225V [Radio] ID = 405267 700x472
Select picture or schematic to display from thumbnails on the right and click for download.
For model 225V, Kungs (Brand); Göteborg

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1944 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8EG 6K7G 6Q7G 6V6G 5Y3G
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 225V - Kungs Brand; Göteborg
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 295 x 230 mm / 19.3 x 11.6 x 9.1 inch
Source of data - - Data from my own collection

Model page created by Anders Söderström. See "Data change" for further contributors.



All listed radios etc. from Kungs (Brand); Göteborg
Here you find 166 models, 71 with images and 54 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
