314B

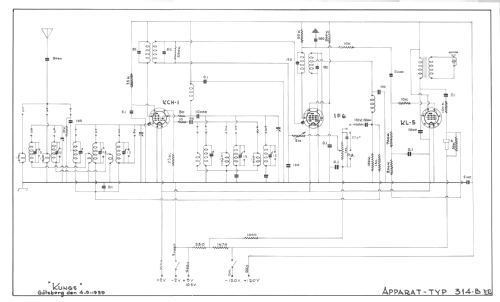

314B; Kungs Brand; (ID = 659514) Radio
314B; Kungs Brand; (ID = 1773471) Radio 314B; Kungs Brand; (ID = 1773470) Radio
314B; Kungs Brand; (ID = 1773472) Radio 314B; Kungs Brand; (ID = 1773473) Radio
314B; Kungs Brand; (ID = 1773474) Radio 314B; Kungs Brand; (ID = 1773475) Radio
Use red slider bar for more.
314B; Kungs Brand; (ID = 1773471) Radio
Kungs Brand;: 314B [Radio] ID = 1773471 800x505
Select picture or schematic to display from thumbnails on the right and click for download.
For model 314B, Kungs (Brand); Göteborg

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: KCH1 1F6 KL5
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 & 9 & 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 314B - Kungs Brand; Göteborg
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 295 x 240 mm / 18.5 x 11.6 x 9.4 inch
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Price in first year of sale 210.00 SEK

Model page created by John Koster. See "Data change" for further contributors.
