323V

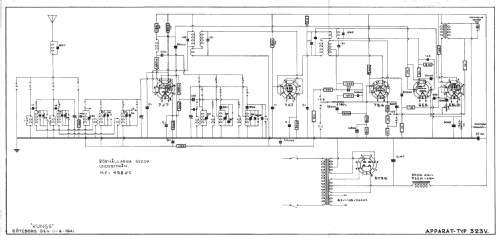

323V; Kungs Brand; (ID = 664829) Radio
323V; Kungs Brand; (ID = 402675) Radio 323V; Kungs Brand; (ID = 402677) Radio
323V; Kungs Brand; (ID = 402676) Radio
Use red slider bar for more.
323V; Kungs Brand; (ID = 402675) Radio
Kungs Brand;: 323V [Radio] ID = 402675 700x483
Select picture or schematic to display from thumbnails on the right and click for download.
For model 323V, Kungs (Brand); Göteborg

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 7J7 7A7 7B6 EBL21 6E5 5Y3
Main principle Superheterodyne (common)
Details
Power type and voltage Alternating Current supply (AC) / 110-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 323V - Kungs Brand; Göteborg
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 315 x 230 mm / 19.7 x 12.4 x 9.1 inch
Net weight (2.2 lb = 1 kg) 14.3 kg / 31 lb 8 oz (31.498 lb)
Price in first year of sale 350.00 SEK
Source of data - - Data from my own collection

Model page created by Anders Söderström. See "Data change" for further contributors.
