425SV

425SV; Kungs Brand; (ID = 695754) Radio 425SV; Kungs Brand; (ID = 665976) Radio

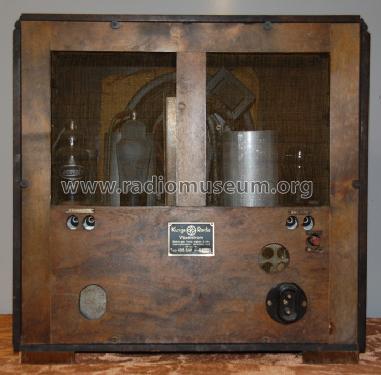

425SV; Kungs Brand; (ID = 695756) Radio 425SV; Kungs Brand; (ID = 695755) Radio
Use red slider bar for more.
425SV; Kungs Brand; (ID = 695754) Radio
Kungs Brand;: 425SV [Radio] ID = 695754 682x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 425SV, Kungs (Brand); Göteborg

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: MX40 VMP4 MHD4 MPT4 U12
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 425SV - Kungs Brand; Göteborg
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 430 x 420 x 240 mm / 16.9 x 16.5 x 9.4 inch
Notes The mains transformer are wound for several different primary voltages, but changing voltage requires a factorymade plug for the desired voltage.
Price in first year of sale 375.00 SEK

Model page created by Anders Söderström. See "Data change" for further contributors.
