- Country
- Sweden
- Manufacturer / Brand
- Kungs (Brand); Göteborg
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 123335
-
- alternative name: Kungsradio
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Dry Batteries / 90 & 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

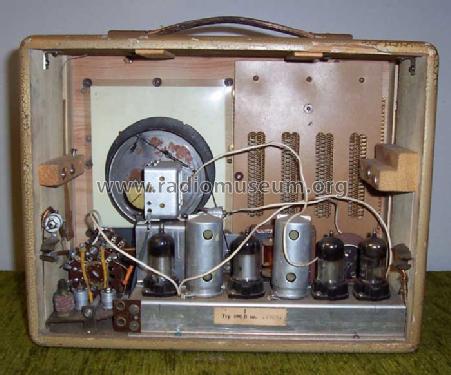

- Model: 490B - Kungs Brand; Göteborg
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 300 x 240 x 145 mm / 11.8 x 9.4 x 5.7 inch
- Source of data
- - - Data from my own collection
