• Country
• Sweden

• Manufacturer / Brand
• Kungs (Brand); Göteborg

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123342

• • alternative name: Kungsradio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

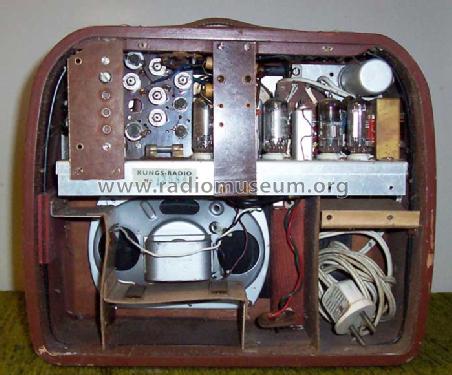

• DK96 DF96 DAF96 DL96

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Line / Batteries (any type) / 110; 125; 150; 220; ?? Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

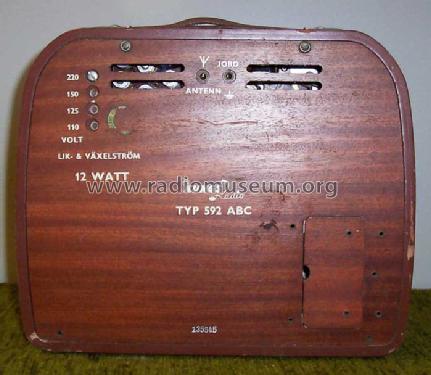

• Model: 592ABC - Kungs Brand; Göteborg

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 295 x 250 x 120 mm / 11.6 x 9.8 x 4.7 inch

• Notes
• Silicon rectifier.

• Source of data
• - - Data from my own collection
