• Country
• Sweden

• Manufacturer / Brand
• Kungs (Brand); Göteborg

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123504

• • alternative name: Kungsradio

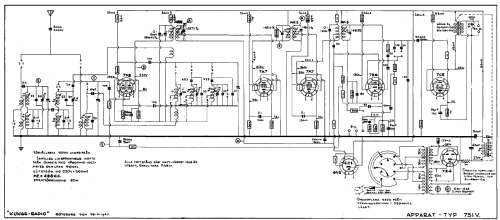

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 7F8 7A7 7A7 7B6 6E5 7C5 7Z4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

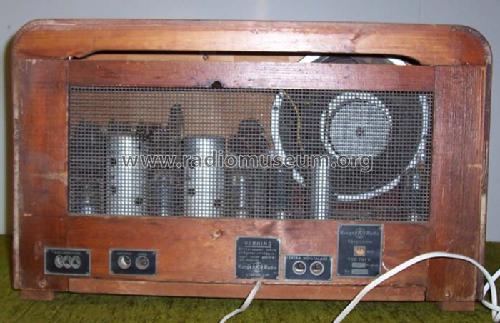

• Model: 751V - Kungs Brand; Göteborg

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 525 x 325 x 240 mm / 20.7 x 12.8 x 9.4 inch

• Notes
• Most likely sold as new for two seasons.

• Source of data
• - - Data from my own collection
