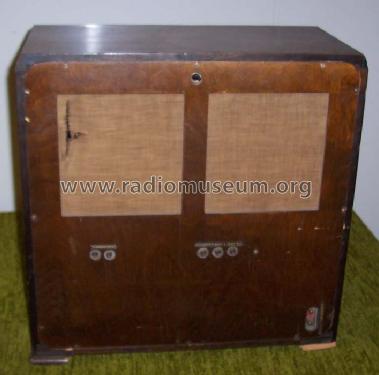

HL; Kungs Brand; (ID = 402063) Radio
Use red slider bar for more.
HL; Kungs Brand; (ID = 402062) Radio
Kungs Brand;: HL [Radio] ID = 402062 678x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model HL, Kungs (Brand); Göteborg

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RENS1819 REN1821 RENS1823d
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: HL - Kungs Brand; Göteborg
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 435 x 440 x 220 mm / 17.1 x 17.3 x 8.7 inch
Notes First production season for Kungs.
Net weight (2.2 lb = 1 kg) 12.7 kg / 27 lb 15.6 oz (27.974 lb)
Source of data - - Data from my own collection

Model page created by Anders Söderström. See "Data change" for further contributors.
