• Country
• Japan

• Manufacturer / Brand
• Kyodo Communications & Electronics Inc ; Tokyo

• Year
• 1992 ??

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 214342

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 21600/455 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Powered by external power supply or a main unit. / 13,6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

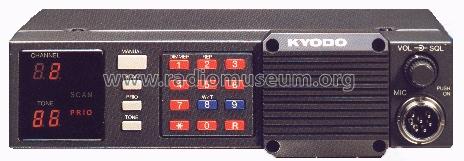

• Model: Tranceptor movil KG-107A [Banda media] - Kyodo Communications &

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 178 x 44 x 203 mm / 7 x 1.7 x 8 inch

• Notes
• Sintetizado. 99 canales entre 66-80 MHz. 40 W RF.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
