• Country
• Japan

• Manufacturer / Brand
• Kyoritsu Electrical Instrument Works Ltd. (KEW); Tokyo

• Year
• 1975 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 246964

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• RF-Circuit or wave trap (separate, can also be an antenna with amp.)

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

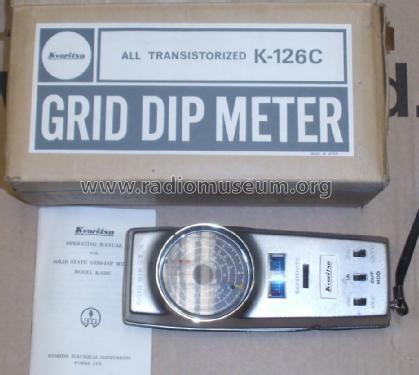

• Model: All Transistorized Grid Dip Meter K-126C - Kyoritsu Electrical Instrument

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Grid-Dipmeter und Resonanzfrequenzmesser mit Wechselspulen.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
