Standing Wave Ratio K-109
Kyoritsu Electrical Instrument Works Ltd. (KEW); Tokyo
- Country
- Japan
- Manufacturer / Brand
- Kyoritsu Electrical Instrument Works Ltd. (KEW); Tokyo
- Year
- 1965–1975 ??
- Category
- Amateur Equipment (Other, but not Key)
- Radiomuseum.org ID
- 79495

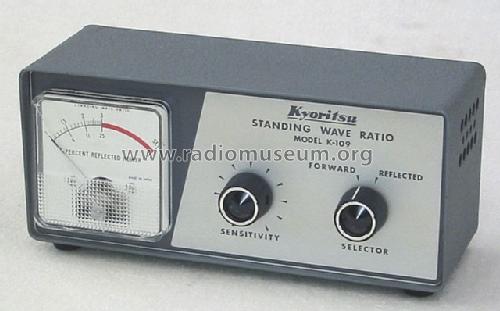

J Kyoritsu Standing Wave Ratio K-109

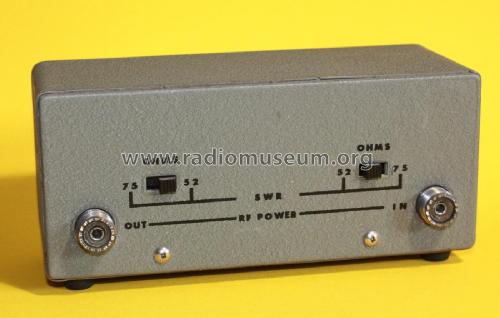

J Kyoritsu Standing Wave Ratio K-109 rear
- Main principle
- Crystal or Solid State Detector
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- No Power needed
- Material
- Metal case
- from Radiomuseum.org
- Model: Standing Wave Ratio K-109 - Kyoritsu Electrical Instrument
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 187 x 90 x 73 mm / 7.4 x 3.5 x 2.9 inch
- Notes
-
Standing wave ratio meter, range 3.5 to 30 MHz. Impedance 50 or 75 ohms, switchable. There is no difference to the model KSW-10.
- Net weight (2.2 lb = 1 kg)
- 0.8 kg / 1 lb 12.2 oz (1.762 lb)
- Price in first year of sale
- 78.00 DM
- Author
- Model page created by a member from D. See "Data change" for further contributors.
