• Country
• Japan

• Manufacturer / Brand
• Kyoritsu Electrical Instrument Works Ltd. (KEW); Tokyo

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 256252

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 2 x AA 1.5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

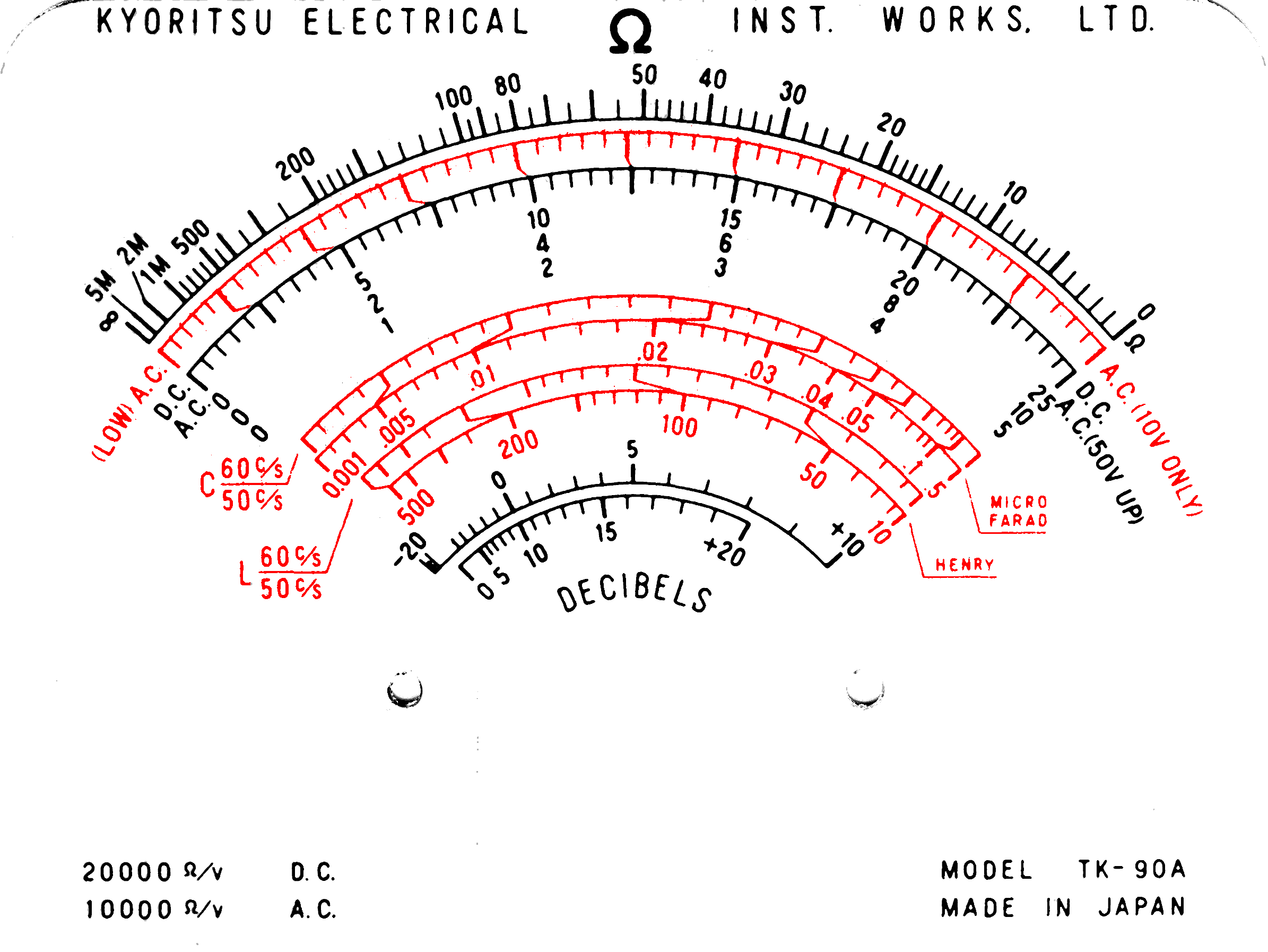

• Model: Multimeter TK-90A - Kyoritsu Electrical Instrument

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 110 x 160 x 58 mm / 4.3 x 6.3 x 2.3 inch

• Notes

• DC: 20.000 Ω/V
  AC: 10.000 Ω/V

• Net weight (2.2 lb = 1 kg)
• 0.670 kg / 1 lb 7.6 oz (1.476 lb)

• Author
• Model page created by Rainer Glaschick. See "Data change" for further contributors.
