Colourmatch 625 Pattern Generator CM6004-PG
Labgear Ltd.; Cambridge
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Labgear Ltd.; Cambridge
- Year
- 1970 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 230469
- Number of Transistors
- 16
- Semiconductors
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Colourmatch 625 Pattern Generator CM6004-PG - Labgear Ltd.; Cambridge
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 190 x 90 x 130 mm / 7.5 x 3.5 x 5.1 inch
- Notes
-

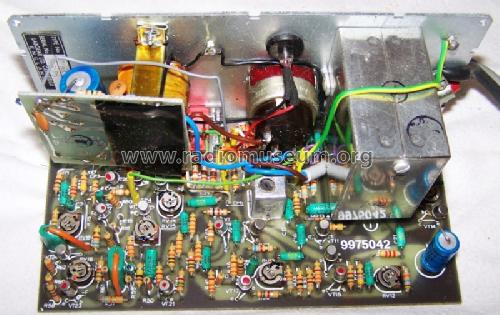

Crosshatch, Dot and Greyscale Pattern generator with built in UHF modulator. This was used to provide a test pattern when adjusting the convergence in colour TV sets.
- Net weight (2.2 lb = 1 kg)
- 1 kg / 2 lb 3.2 oz (2.203 lb)
- Author
- Model page created by Nigel Robinson. See "Data change" for further contributors.
