• Country
• Spain

• Manufacturer / Brand
• LME Laboratorio de Metrologia Electrónica; Barcelona

• Year
• 1967

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 171069

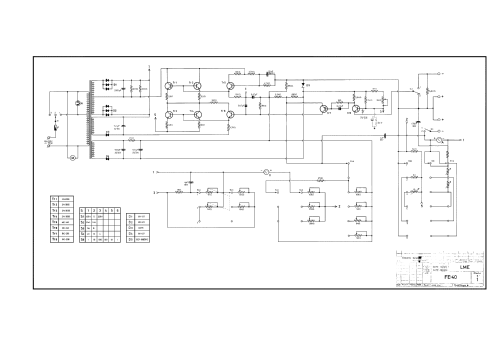

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• BC205 BC208 MC140 2N3055

• Wave bands
• - without

• Details
• Power Supply (not only Batt.El.)

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Fuente Alimentación FE-40/2 - LME Laboratorio de Metrologia

• Notes
• 0-40 V. @ 2A max.
  Transistores listados uno por modelo.
  Each transistor type listed once.

• Source of data
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
