- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 185703
-
- alternative name: Wholesale Radio

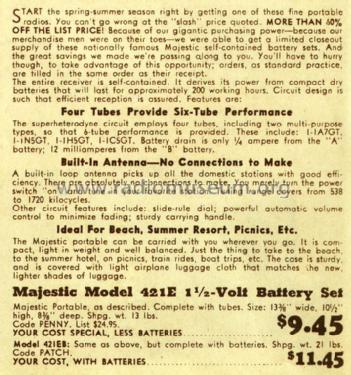

Katalog Lafayette N0.80, Seite 8
Katalog Lafayette N0.80, Seite 8
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1.5/"B"-Type Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 421E - Lafayette Radio & TV Corp; New
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 13.37 x 10.5 x 8.375 inch / 340 x 267 x 213 mm
- Notes
- This Majestic (original Manufacturer or just name?) model 421E as sold by Lafayette uses 1.5 V from "A"-Battery at 0.25 Amp and a "B"-Battery (voltage not given)at 12 mAmps. A built-in antenna makes the set truly portable. See details and summaries for the models of this Lafayette catalog no. 80, Spring-Summer 1940.
- Price in first year of sale
- 9.00 $
- Mentioned in
- Lafayette Radio Catalog (No.80, page 8)
- Author
- Model page created by Felix Schaffhauser. See "Data change" for further contributors.
