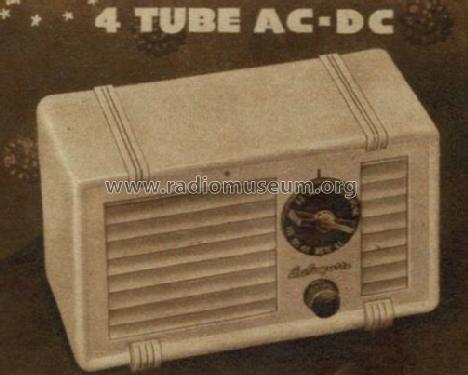

D-25, 4 Tube AC-DC
Lafayette Radio & TV Corp; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 164011
-
- alternative name: Wholesale Radio
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: D-25, 4 Tube AC-DC - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 7.625 x 4.125 x 4.5 inch / 194 x 105 x 114 mm
- Notes
- The Lafayette model D-24 has a plastic Walnut cabinet. Model D-25 is the same in plastic Ivory cabinet. There is also a special European long-wave model with the same data but having an additional tuning band covering 150 to 425 kc. as model D-56 (Walnut) and D-57 (Ivory). All have a self-contained aerial.
See details and summaries for the models of this Lafayette catalog no. 73, 1939 for radio season 1938/39.
- Price in first year of sale
- 9.00 $
- Literature/Schematics (1)
- Lafayette Radio Catalog (Lafayette catalog no. 73 from 1939 for saison 1938/39, page ...)
- Author
- Model page created by Felix Schaffhauser. See "Data change" for further contributors.
