6 Meter Transceiver HA-650
Lafayette Radio & TV Corp; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1966
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 289175
-
- alternative name: Wholesale Radio
July 1966 page 145
QST July 1966 page 145
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Powered by external power supply or a main unit. / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: 6 Meter Transceiver HA-650 - Lafayette Radio & TV Corp; New
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-

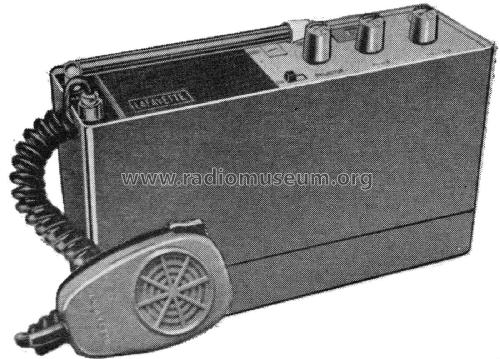

The Lafayette HA-650 is a solid-state, crystal controlled, 6 meter transceiver with 2.5 watts input. The receiver is a tunable superheterodyne, while the transmitter has six channels. It has a built-in power supply, but an optional AC power supply was available, so it could be used as a mobile, portable or base. It included a microphone, leather case with strap, telescoping antenna and batteries.
- Price in first year of sale
- 119.95 USD
- Mentioned in
- QST (July 1966 page 145)
- Author
- Model page created by Wayne Childress. See "Data change" for further contributors.
