KT-900

KT-900 ; Lafayette Radio & TV (ID = 2363676) Ampl/Mixer KT-900 ; Lafayette Radio & TV (ID = 488620) Ampl/Mixer

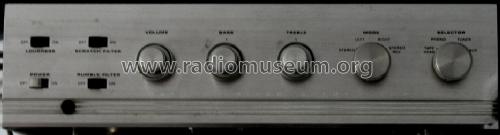

KT-900 ; Lafayette Radio & TV (ID = 465793) Ampl/Mixer KT-900 ; Lafayette Radio & TV (ID = 488621) Ampl/Mixer
KT-900 ; Lafayette Radio & TV (ID = 488622) Ampl/Mixer
Use red slider bar for more.
KT-900 ; Lafayette Radio & TV (ID = 2363676) Ampl/Mixer
Lafayette Radio & TV: KT-900 [Ampl/Mixer] ID = 2363676 1300x330
Select picture or schematic to display from thumbnails on the right and click for download.
For model KT-900, Lafayette Radio & TV Corp; New York (NY):
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  United States of America (USA)
Manufacturer / Brand:  Lafayette Radio & TV Corp; New York (NY)
alternative name

Wholesale Radio
Year: 1962 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 22:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (unknown quality)
from Radiomuseum.org Model: KT-900 - Lafayette Radio & TV Corp; New
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 13.3 x 4 x 12.3 inch / 338 x 102 x 312 mm
Notes Stereo. 60 W at 8 Ohms, 38 W at 4 or 16 Ohms. 5-25 000Hz +/- 1 dB at 35W RMS.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Source of data - - Data from my own collection
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
