• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1970

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 135918

• • alternative name: Wholesale Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6AN8 6AN8 6BA6 6BA6 12AX7 6AQ5 6GH8 6GH8 12AT7 6BA6 6BQ5

• Number of Transistors
• 2

• Semiconductors
• 2SB471 2SB471

• Main principle
• Transceiver; ZF/IF 11275/455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 117 / DC 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

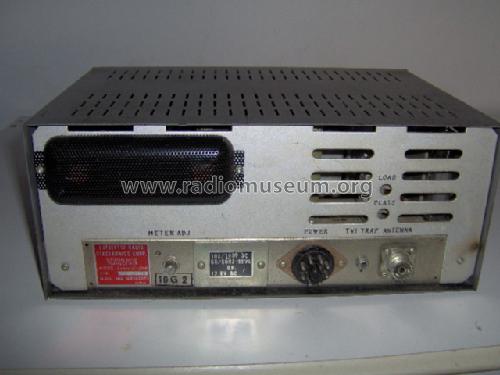

• Model: Comstat 25-B - Lafayette Radio & TV Corp; New

• Shape
• Book-shelf unit.

• Notes

• CB transceiver, 23 channel synthesized, dual-conversion superhet, AM only.
  If powered from 12 VDC, a transistor driven push pull inverter provides the B+ voltages.

  Made in Japan

• Price in first year of sale
• 151.95 USD

• Mentioned in
• Lafayette Radio Catalog (1970 Catalog #700, page 478)

• Literature/Schematics (1)
• Mag. CQ Elettronica (Italy) 01/1973

• Literature/Schematics (2)
• Photofact CB Radio Manual, SAMS (CB-33, April 1971)

• Author
• Model page created by Alessandro Santinelli. See "Data change" for further contributors.
